Can you use Page Object model with Appium Studio

#1

Hi,

Is it possible to use page object models with Appium studio? If so how can you pass an instance of the AndroidDriver into object class?

I was having issues doing this - I got a null pointer error as script could not find elements? Not sure if page initialized correctly.

#2

Hi,
I’m not aware of any issue that can block you from using Page Object model.
Please share some more information so we can assist.

#3

H Guy,

LogInTest.java

package tests;

import io.appium.java_client.remote.AndroidMobileCapabilityType;
import io.appium.java_client.android.AndroidDriver;
import io.appium.java_client.android.AndroidElement;
import io.appium.java_client.remote.MobileCapabilityType;
import pages.LogInPage;

import org.openqa.selenium.support.PageFactory;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;
//import org.openqa.selenium.ScreenOrientation;
import org.openqa.selenium.remote.DesiredCapabilities;
import org.openqa.selenium.By;
import org.junit.*;
import java.net.URL;
import java.net.MalformedURLException;

public class LogInTest {
private String reportDirectory = “reports”;
private String reportFormat = “xml”;
private String testName = “Untitled”;
protected AndroidDriver driver = null;

DesiredCapabilities dc = new DesiredCapabilities();

@Before
public void setUp() throws MalformedURLException {
	dc.setCapability("reportDirectory", reportDirectory);
	dc.setCapability("reportFormat", reportFormat);
	dc.setCapability("testName", testName);
	dc.setCapability(MobileCapabilityType.UDID, "65104f1f");
	dc.setCapability(AndroidMobileCapabilityType.APP_PACKAGE, "com.experitest.ExperiBank");
	dc.setCapability(AndroidMobileCapabilityType.APP_ACTIVITY, ".LoginActivity");
	dc.setCapability("instrumentApp", true);
	driver = new AndroidDriver<AndroidElement>(new URL("http://localhost:4723/wd/hub"), dc);

}

@Test
public void testUntitled() {

	LogInPage.login("company", "company");


}


@After
public void tearDown() {
	driver.quit();
}

}

Page object class
LogInPage.java

package pages;

import org.openqa.selenium.support.PageFactory;

import io.appium.java_client.android.AndroidDriver;
import io.appium.java_client.android.AndroidElement;
import io.appium.java_client.pagefactory.AndroidFindBy;
import io.appium.java_client.pagefactory.AppiumFieldDecorator;

public class LogInPage {

private AndroidDriver<AndroidElement> driver;

public LogInPage(AndroidDriver<AndroidElement> driver) {
	this.driver = driver;
	PageFactory.initElements(new AppiumFieldDecorator(driver), this);
}


@AndroidFindBy(id = "usernameTextField")
public static AndroidElement username;

@AndroidFindBy(id = "passwordTextField")
public static AndroidElement password;

@AndroidFindBy(id = "id=loginButton")
public static AndroidElement login;


public static void login(String username, String password) {
	LogInPage.username.sendKeys(username);
	LogInPage.password.sendKeys(password);
	login.click();

}

}

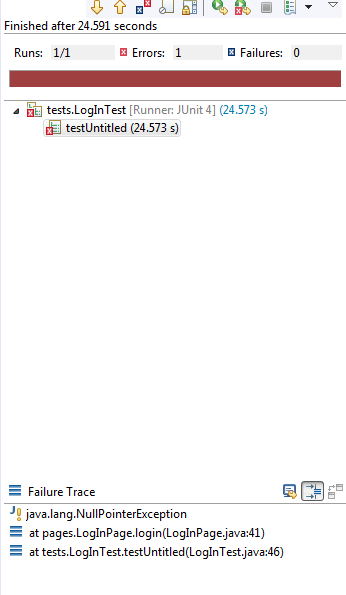

error.PNG346Ă—595 11.5 KB

Thanks for any help you can give

#4

I think I have found solution

I didn’t instantiate the LoginPage

Change @Test to

@Test
public void testUntitled() {

	LogInPage lp = new LogInPage(driver);
	lp.login("company", "company");


}
2 Likes
